Descrizione

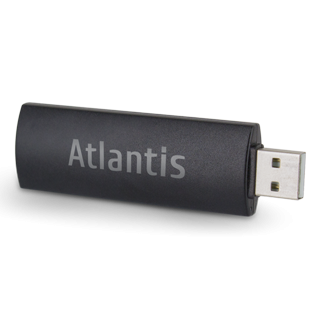

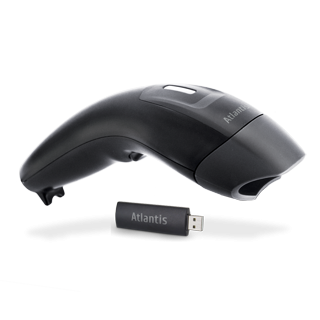

Scanbar LN1252-W integra la tecnologia Linear image con un sensore ottico da 2500pixel. Il pratico ricevitore senza fili permette l’uso del prodotto fino a 100mt di distanza dal PC in campo aperto. Prodotto semiprofessionale adatto sia nel mondo office che retail. Supporta tutti i barcode compresi GS1 Databar e Italian Pharmacy.
Optical
Optical sensor: Linear image 2500 pixels
Light source: Red LED (660nm)
Resolution: 4 mil
Depth of Field: 30~2000mm (13mil)
Scan Rate: 270 scans/second
Pcs: =>45%
Electrical
Voltage: +3.3V±5%
Scanning currents: <110 mA
Standby currents: <90 mA
Power Consumption: 0,3mA (sleep mode)
Environment
Operating temperature: 0°C to 40°C / 32°F to 104°F
Storage temperature: -20°C to 60°C / -4°F to 140°F
Light Level: Max 100.000 Lux
Operating humidity: 95% RH, non-condensing at 122° F/50° C
Storage humidity: 85% RH, non-condensing at 158° F/70° C
Shock resistance: 1.5m drops
Physical
Weight: 140g
Dimensions: 186mm(L)x67mm(W)x91mm(H)
Housing Material: ABS plastic
Communication
Frequency band: 2.4 Ghz
Working Distance: Range up to 100m (open air)
Battery Type: polymer 3.7V
Battery Capacity: 1200mAh (50,000 scans per recharge)
Charge: By USB power retrieving cable
Time of Charge: About 4 hours
Codici a barre supportati
All UPC/EAN/JAN
EAN128 Code
Code 39
Code 39 Full ASCII
Code32 / Italian Pharmacy
Code 128
CODABAR/NW7
Interleave 25
Industrial 25
Matrix 25
MSI/PLESSEY
Telepen
Code 93
Code 11
China Postage
GS1 DataBar
